Solaria PowerXT® | Rooftop Solutions


Datasheets: PowerXT-330R-PX|325R-BX |  PowerXT-405C-WX|400C-BX

Additional Product Information: Terms & Conditions | Warranty | InstallationFAQ

Solaria PowerXT® - High performance, high density solar panels that produce up to 20% more power than conventional modules.

Developed in California, Solaria’s patented cell cutting and assembly form ‘high density’ sub-strings, larger than conventional solar cells, which are packed more efficiently and reduce inactive space between cells. By utilizing a ribbon-less interconnection process, cells are cut and overlaid without soldering which creates a highly reliable power unit assembly. The PowerXT module is electrically designed to reduce the power losses due to shadowing across the module by utilizing parallel connections between sets of sub-strings within each quadrant of the module. By removing visual gaps between cells on the conventional modules, the PowerXT module provides a visually stunning appearance compared to any other solar system.

Features:

  • Higher Efficiency, Higher PowerPowerXT modules achieve higher efficiency over conventional modules, making Solaria modules one of the highest power modules available

  • Lower System CostsHigher efficiency modules produce more power per square meter area, reducing the number of panels, balance of system components, and installation labor

  • Improved Shading ToleranceSub-strings are interconnected in parallel, dramatically lowering the shading losses and increasing energy yield

  • Durability and ReliabilityRibbon-less, solder-free cell-to-cell connections increase reliability and are designed to exceed the 25-year warranty


Solaria PowerXT-R

Solaria PowerXT: Residential

  • Products:
    • PowerXT-330R-PX (black backsheet)
    • PowerXT-325R-BX (black backsheet)
  • Application: Rooftops
  • Max Power: 320 to 330 Wp
  • Efficiency: Up to 19.3%
  • Features: Premium Appearance & High Power






Module Comparison Close-Up: PowerXT vs. Conventional

1. Inactive Area Losses 2. Series Sub-String Losses 3. Bus Bar Losses

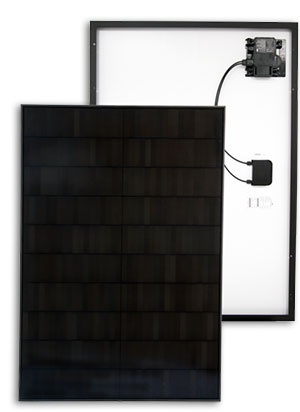

Solaria PowerXT Module

  1. No Bus Bars
  2. Removes Inactive Area
  3. Parallel Substrings



Conventional Module

  1. Inactive Area Losses
  2. Series Sub-String Losses
  3. Bus Bar Losses
